Application Scope
It is used in pharmaceutical and chemical products. It has the supreme advantage in the industry of production process for the flammables & explosives, hazardous & volatile and sterile raw active pharmaceutical ingredients which are difficult to be transferred from none-integrated equipment.
Customizable function based on customer`s requirements.

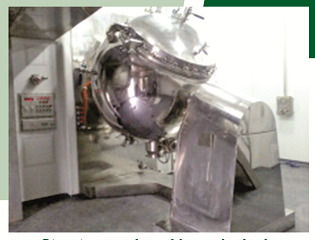

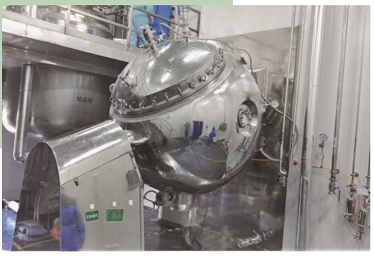

Structure working principal: Spherical Four In-One Equipment is consisted of
ball shape inner cavity and tilted rotor,
the inner
cavity and rotor are able to rotate independently.
Both rotor and
shell (cavity) are able
to be heated.
The cavity
is smooth and has no
dead angle achieving the maximum heating area and sufficient suction filtration area under the same
volume.
It has
good pressure resistance ability, no contamination to the material, high efficient. good hygiene condition and energy
saving. Through
PLC auto control
cabinet. it
is able to achieve rotate right and left, interval deoperation, stepless speed regulating and automatic
mate rral discharge.
Main features:
One equipment is able to replace the equipment such as crystallizer，centrifuge,
washer and
dryer with
the advantages of high efficiency,
low energy consumption, safe and
Eco-friendly. It has high mixing
capacity and initial chopping function.
While dynamic vacuum mixing drying process, the scrape and
agitating can
reach toeach places in the cavity，no blocking,
no pilling,
completematerial discharge, no
contamination of the material, the
inside of the machine is smooth without dead corner.It features with automatic material feeding
and discharge, on-line cleaning and sterilization, satisfying
new GMP
version
or FDA requirements.
